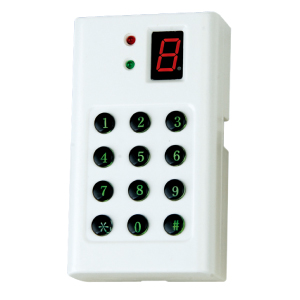

FL-AC15
Specifications
● Power Supply: 12V DC or 10V AC
● Current drain: standby=7mA, Operation=40mA(Max.)
● Relay contacts withstand: (N.O.)25V/2A.
● Operating temperature: (-)10 ºC～50 ºC
● Humidity withstand:95%
Coded keypad for switching locks and security system
● Digital display.
● Controls two builts-in relays.
● Master code + 16 secondary codes.
● Temporary (one-use) secondary code.
● Option to limit users to operate specific relay only.
● Up to 10 digits for each authorized code.
● Up to 10,000,000,000 combinations.
● Simple programming through the keyboard.
● Tone and display indication for each pressing.
● EEPROM non-erasable memory-power failure protected.
● Extremely reliable & Highly immune to false alarms.
● Relay activation timeprogrammable from 1 to 64,999 sec. (18hours)
● Programmable tone indication to accompany the relay activation.
● Programmable dual position ON/OFF relay activation.
● High level of RFI/EMI immunity.
● Code deciphering protection-against random pressing of keys.
● “CONTROL” input to operate the relay without using a code.
