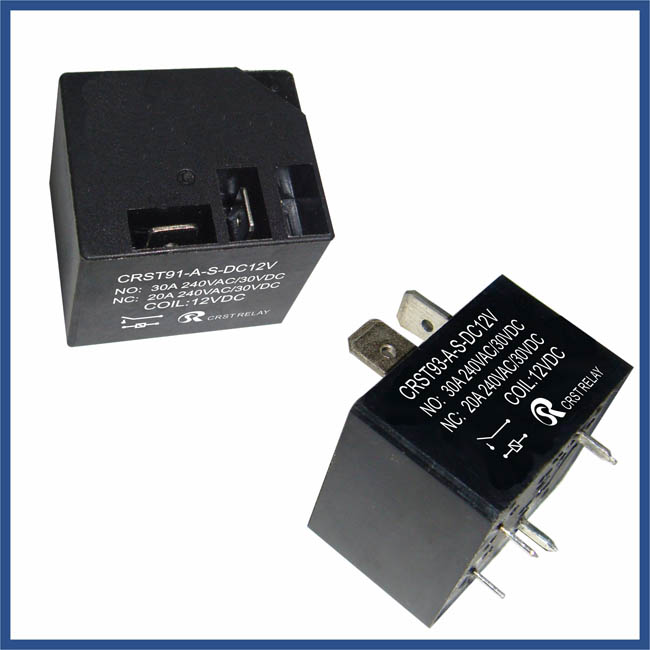

Power relay T91
Type:CRST91/93 Generally relays

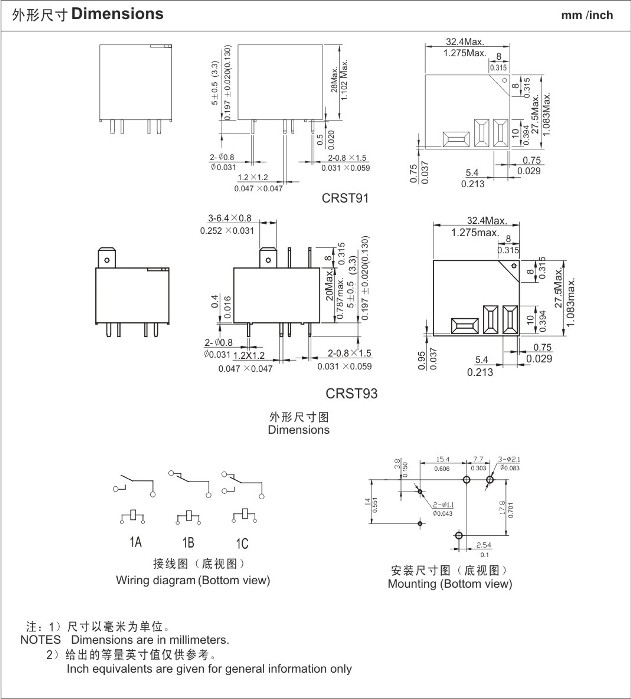

Dimensions:32.4X27.5X28(20)mm
Contact Form:1A,1B,1C
Contact Rating:30A/40A/240VAC,30VDC;30A/277VAC,30A/30VDC

Features:
· Small size, light weight. Low coil power consumption, heavy contact load. Strong anti-shock and anti-vibration, high reliability, long life.
· PC board mounting and direct insert mounting available.
· Suitable for automobile, machine, electronic equipment, air conditioner and household appliance applications.

GU(Q-C-T),WJQX-16F(T91),953A/953B,JQX-105F,HF2160,JQX-16F,BTT3 HLS-T91(16F)-1 HLS-T91(16F)-2 HLS-T91(16F)-3,HJQ-15F-1 HJQ-15F-2,HHC67F(T91),(T93),JQX-16F/T91,491,AR91,CG,YT91,LI,JQX-16F,JQX-16F-2,CYT91,JQX-16F(T91),GK-B,SLC(T91),RT2,SLC,AZ2100,T9A,ORU,JT,G7G,NT91,JQX-105F-1,JQX-105F-2, HK15F,CMP8
Jargon:
SPNO(1A)=Single Pole Normally Open
SPNC(1B)=Single Pole Normally Closed
SPST(1C/O)=Single Pole Single Throw
DPDT=Double Pole Double Throw=2C/O
TPDT=Three Pole Double Throw=3C/O
