automotive relay 4141
Type:CRST4141 Automotive Relays

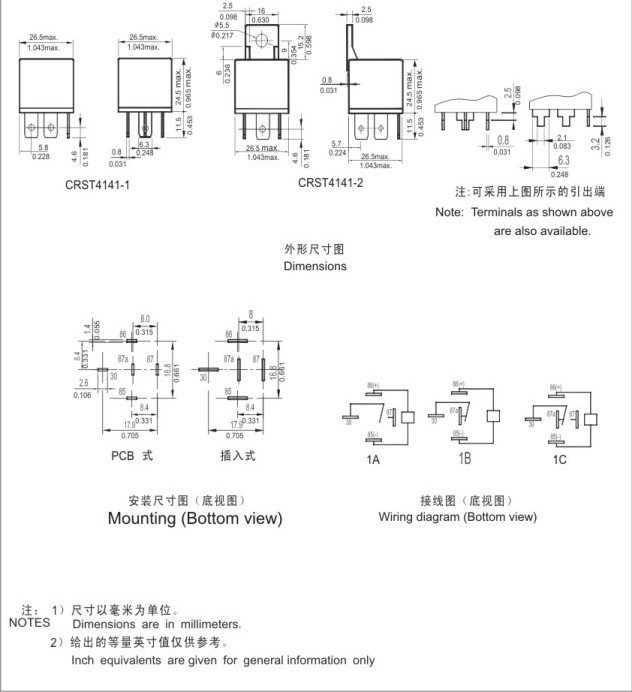

Dimensions:28X28X25(+16)mm
Contact Form:1A,1B,1C
Contact Rating:40A/14VDC

Features:
· Low coil power consumption.
· High sensitivity.
· Small size, light weight.
· PC board mounting.
· Suitable for automation facilities, telecommunication equipment, household electrical appliance, wireless radio remote control, sound control toys application etc.

OKA2,ZT92,GRL,WJD912,WJD914,WJD916,961/994,Y16(80A),STHR,STHA,HS41,BCB(30A,40A,80A),HLS-CMA3,HLSCMA3-1U,TRV4,TRV4-1U,HHC67G (JD19.29),AS403,AS406(CM6331),JD19/JD29,AL/ALB-80A,LCAR/LCAR-1 LCAR-1-P,LCAR-2/LCARH LCARH-P,LCAR,LCARH,JD19/JD29/JD1912JD2912/JD16/JD26JD15/JD25/JD12 JD22/JD13/JD23 CH41/CH42,CH43,JD1912/JDD2912 JD1914/JD2914,GYF1/GYF2,SLDH(4142),RSV/SCB,SARL,AZ972/973,VF4,V231374,CB,G8L,NVF4-1/NVF4-2,HFV4,HKV4/HKV5,CMA31/CMA32,896
Jargon:
SPNO(1A)=Single Pole Normally Open
SPNC(1B)=Single Pole Normally Closed
SPST(1C/O)=Single Pole Single Throw
DPDT=Double Pole Double Throw=2C/O
TPDT=Three Pole Double Throw=3C/O
