Power relay 4120
Type:CRST4120 Automotive Relays

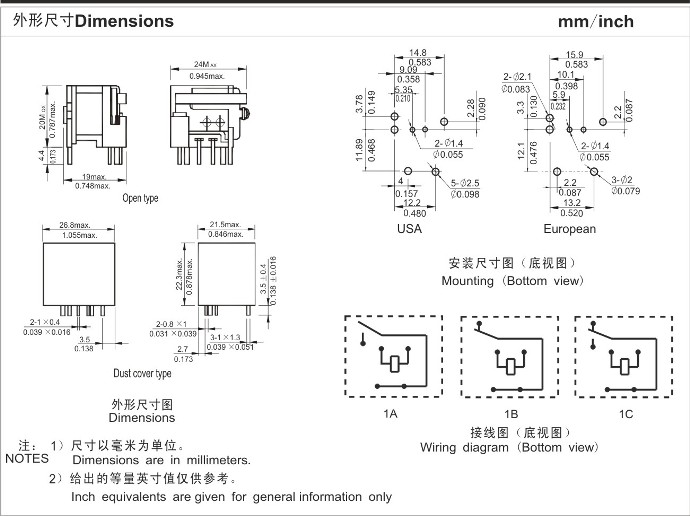

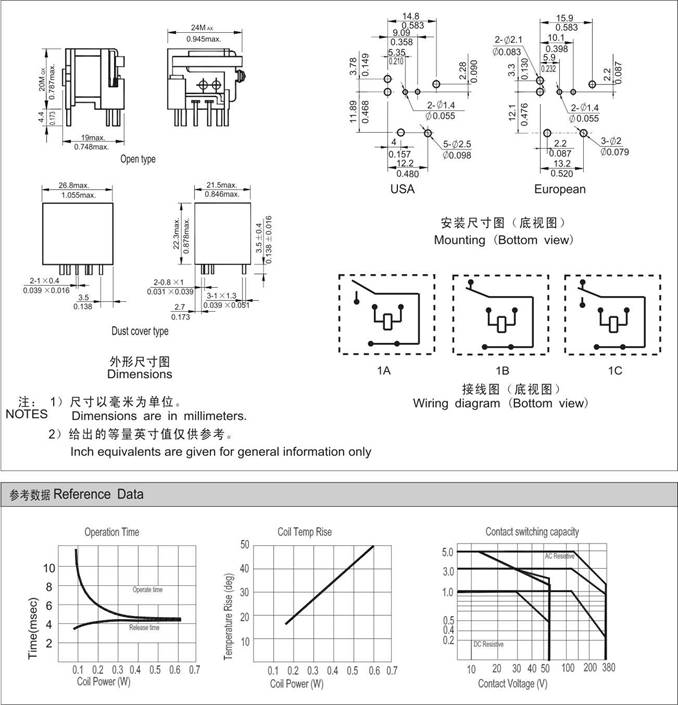

Dimensions:26.5X21.5X22.3mm;24X19X20mm
Contact Form:1A,1B,1C
Contact Rating:1A:45A/14VDC;1B:30/14VDC;1C:20A/120VAC,15A/28VDC

Features:

Small size,heavy contact load,capable of standing strong current of 45A at 14VDC;
PC board mounting
Suitable for automatic control facilities and automobile application etc;
Both European 11mm pole distance and American 8 mm pole distance available.

RWM,WJD4119,STAMR,HSKP,BTX,HLS-4120,HHC67B(4119),AR119,AH,L4120 LARB,4119-U(E),120-U(E),GYD,SLB(4119),RX1/RX,SARB,AZ2970/971,VKP,V23076,FRL-270,4123(JQC-4),HFKP,HKV3,CMA4,822E
Jargon:
SPNO(1A)=Single Pole Normally Open
SPNC(1B)=Single Pole Normally Closed
SPST(1C/O)=Single Pole Single Throw
DPDT=Double Pole Double Throw=2C/O
TPDT=Three Pole Double Throw=3C/O
