Generally relay 4100
Type:CRST4100&4101 Communication relay
Dimensions:15.5X10X11.5mm
Contact Form:1A,1B,1C
Contact Rating:3A/120VAC,24VDC

Features:
· Low coil power consumption.
· High sensitivity.
· Small size, light weight.
· PC board mounting.
· Suitable for automation facilities, telecommunication equipment, household electrical appliance, wireless radio remote control, sound control toys application etc.

Ordering information

CRST4100--C-S-DC12V-L
    1      2 3   4   5

1, Part number: CRST4100 & CRST4101     2, Contact arrangement C:1C SPDT
3,: Enclosure: S:Sealed type; Z:Dust cover
4,Coil power consumption:Nil 0.36W(Standard);L:0.2W(High sensitivity)
5, Coil Rated voltage(V):DC:3,5,6,9,12,24

Contact data

Contact Arrangement

1C(1Z)(SPDT)

Contact Material

AgNi, Ag

Conatct Rating(Resistive)

1A/240VAC; 2A/120VAC;2A/24VDC

Max.Switching Power

150W 625VA

Max.Switching Voltage

60VDC 220VAC Max.Switching Current:5A

Contact Resistance or Voltage Drop

≤50mΩ

Operation Life

Electrical

105

Mechanical

107

Coil Parameter

Coil voltage
(VDC)

Coil Resistance
Ω±10%

Pick up Voltage VDC(Max)
(75% of rated voltage)

Release voltage VDC(Min)
(5% of rated voltage)

Coil power consumption
(W)

Operate Time
(mS)

Release Time
(mS)

Rated

Max

5

5.5

125

3.75

0.5

0.2

≤5

≤5

9

9.9

405

6.75

0.9

12

13.2

720

9.00

1.2

24

26.5

2880

18.0

2.4

5

5.5

75

3.75

0.5

0.36

9

9.9

225

6.75

0.9

12

13.2

400

9.00

1.2

24

26.5

1600

18.0

2.4

Operation condition

Insulation Resistance

100MΩ min(at 500VDC)

Dielectric Strength
Between Contacts
Between Contacts and Coil

50Hz 500V
50Hz 500V

Shock Resistance

100m/s2   11ms

Vibration Resistance

10~55Hz   Double amplitude 1.5mm

Terminals Strength

5N  4N(PCB)

Solderability

235±2℃   3±0.5s℃

Ambient Temperature

-25~70℃

Relative Humidity

85%(at 40℃)

Mass

3.5g

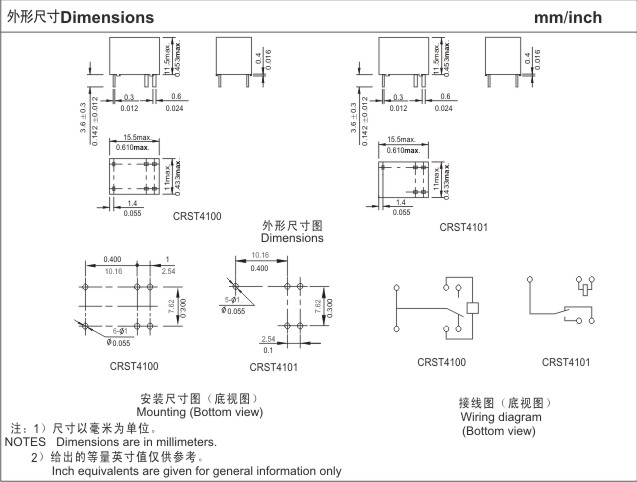

Dimensions(mm/Inch)
