Relay:

　　Generally Relays
　　Communication Relays
　　Auto Relays
　　Reed Relays
　　Power Relays

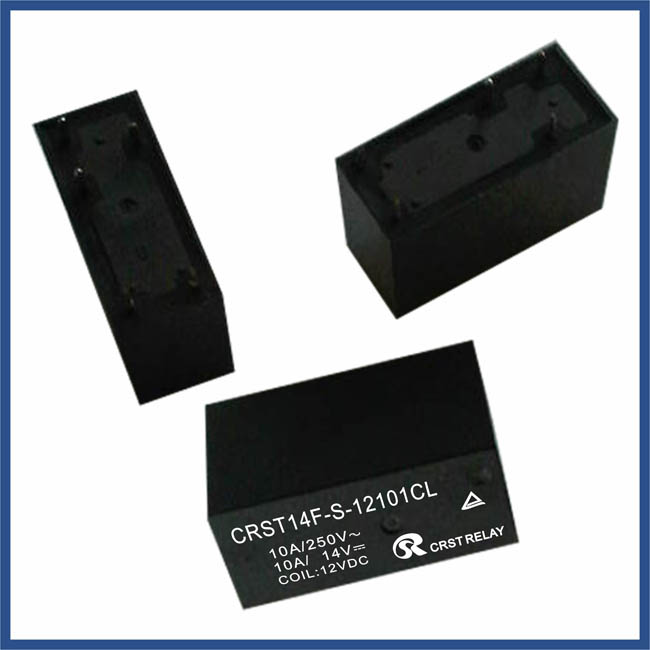

Type:CRST14F Generally relays

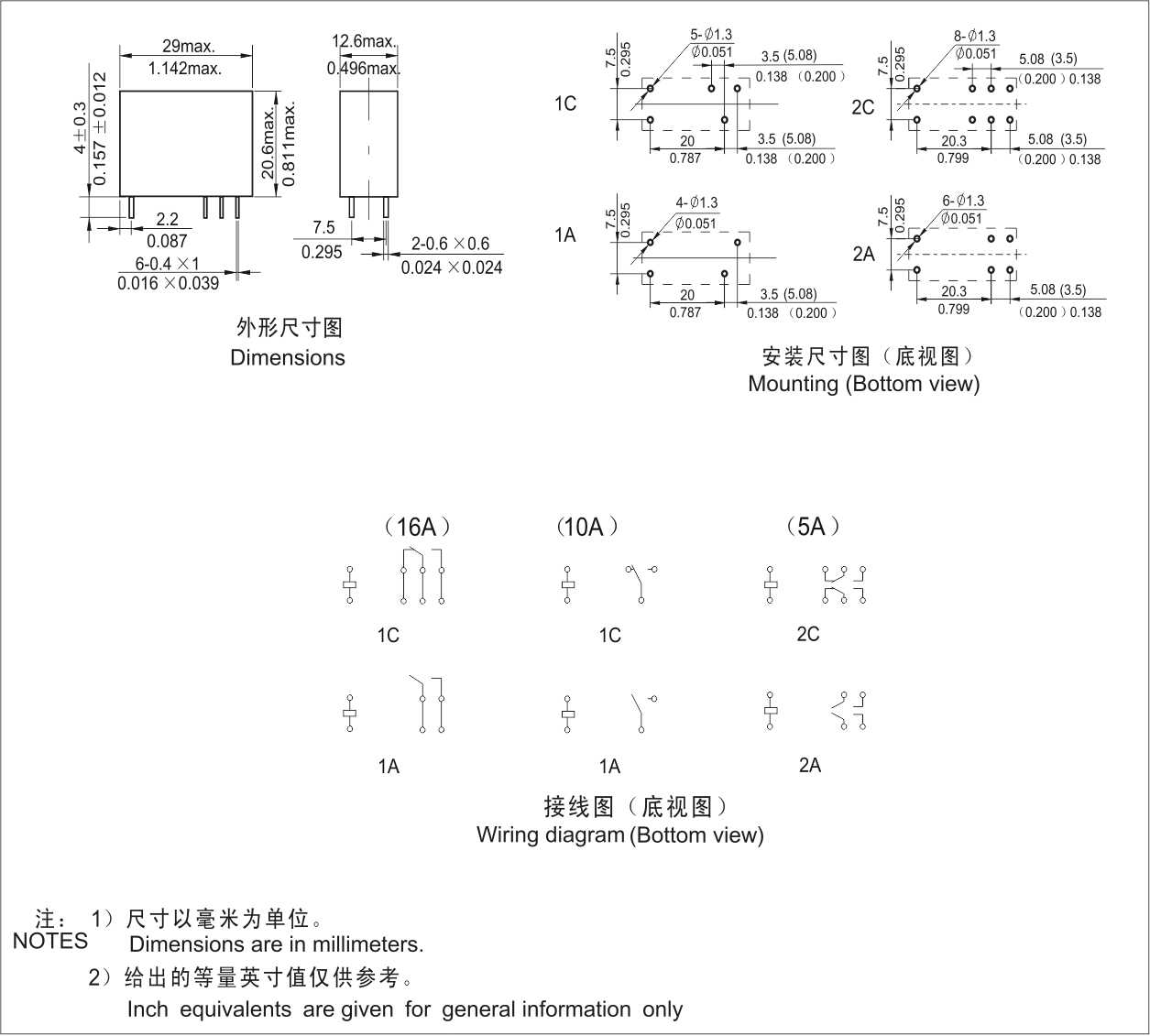

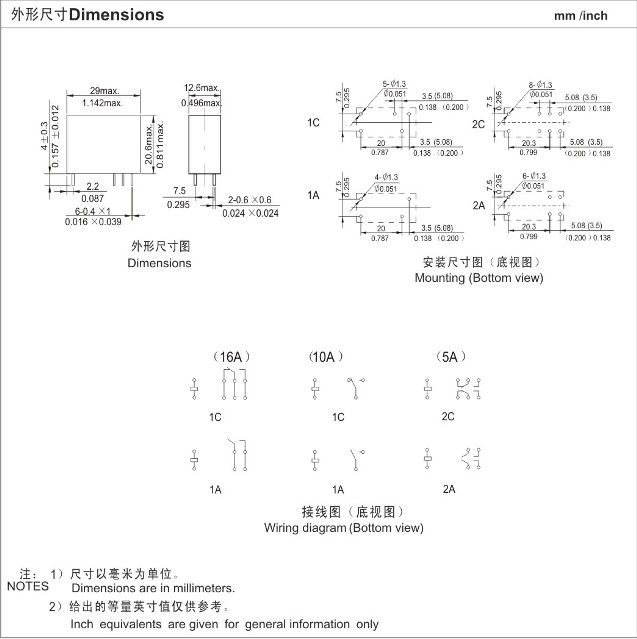

Dimensions:29X12.6X20.6mm

Contact Form:1A,1C,2A,2C

Contact Rating:16A/250VAC;30VDC,10A/250VAC;5A/250VAC

Data Sheet Download

Features:
· Small light in weight. · Low coil consumption. · PC board mounting. · Suitable for household electrical appliance, automation system, electronic equipment, instrument, meter, telecommunication facilities and remote control facilities.

OKA21,ZT94,MI/MIH,JQX-115F,JQX-14FF,ST1-1POLE,ST1H-1POLE,JQX-14F,JQX-14FH,JQX-14FD,BTV,HLS-14F1,JH141FD,TRA1/TRA2,HHC69C,(JQX-14FF-1Z),JQX-14FF JQX-14FL JZC-115,OMI/MOIH,JQX-14FF,JQX-115F(114F),CYF1/CYF3,GA-1,SMI(14F),TNC,SMI-1,SMIH-1,AZ697,RKS/RKA,V23077,OMI-1,VS,JW1,G2R-1,JQX-141FF,JQX-14FF,JQX-141FF,HF141FFH,HK14F/14FD14FH HRM/HCP1/HCP3,845/888,
OKA6,GZ/GZT,ST1-2POLE,ST1H-2POLE,HLS-14F2,HLS-14F3,TRA3,HHC69D,(JQX-14FF-2Z),CYF2,GA-2,SMIH-2P(14FD),TNA,SMI-2,SZ,AZ697,RKS/RKA,V23077,OMI-2,VB,JW2,G2R-2,HRM1/HCP2,845/881
DW1,MI-2P,SMIH(14FH)

Jargon:
SPNO(1A)=Single Pole Normally Open
SPNC(1B)=Single Pole Normally Closed
SPST(1C/O)=Single Pole Single Throw
DPDT=Double Pole Double Throw=2C/O
TPDT=Three Pole Double Throw=3C/O
