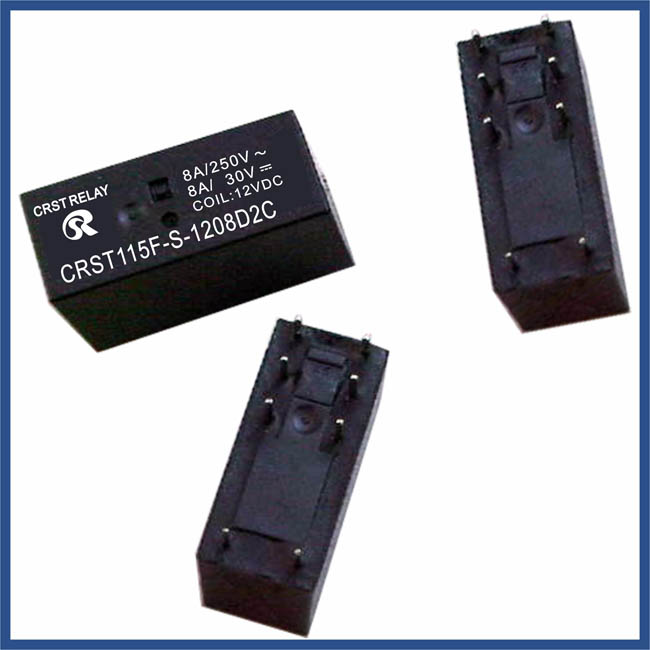

| Type:CRST115F Generally relays |

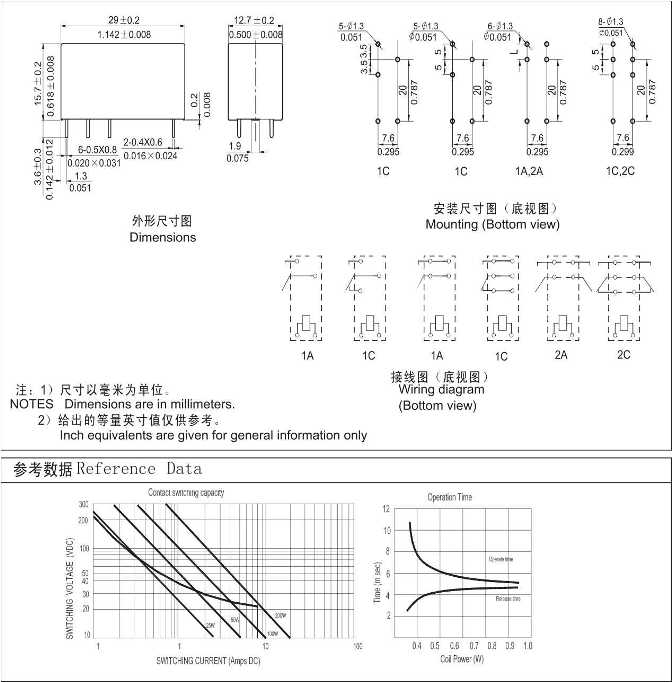

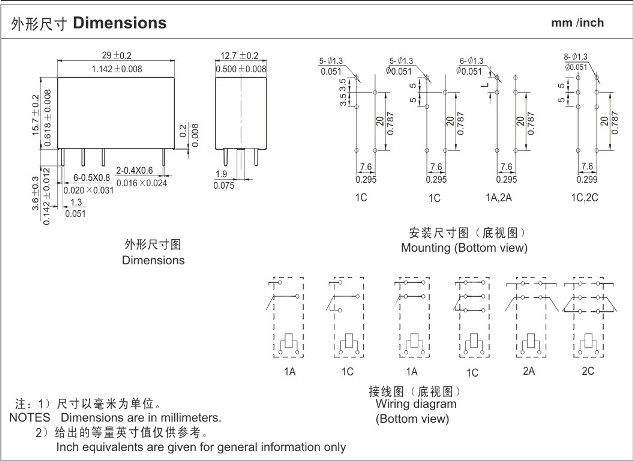

| Dimensions:29X12.7X15.7mm |
| Contact Form:1A,2A,1C,2C |
| Contact Rating:16A/250VAC;30VDC,12A/250VAC,8A/250VAC |
|
|
| |
|
|
|
| Features: |
· Small light in weight.
· Low coil consumption.
· PC board mounting.
· Suitable for household electrical appliance, automation system, electronic equipment, instrument, meter, telecommunication facilities and remote control facilities. |
|
 |
| |
|
|
|
|
|
Jargon:
SPNO(1A)=Single Pole Normally Open
SPNC(1B)=Single Pole Normally Closed
SPST(1C/O)=Single Pole Single Throw
DPDT=Double Pole Double Throw=2C/O
TPDT=Three Pole Double Throw=3C/O |
|
|
|
